Zero Air Gas Generator

Name: Zero Air Gas Generator
Brand: ANALAB SCIENTIFIC INST. PVT. LTD.
Price: 538600 INR
Availability: InStock

538600 INR/Number

Get a Price/Quote

Product Details:

Temperature Range 5C to 40C
Voltage 220V-240V AC
Accuracy <0.1 ppm Hydrocarbon
Capacity 1 to 100 LPM
Core Components Compressor, Filters, Column, DRYER, Auto Control System
Model No ZAG Series
Frequency 50 Hz
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Zero Air Gas Generator Price And Quantity

Price 538600 INR/Number
Minimum Order Quantity 1 Number

Cooling System Air cooled
Outlet Connection 1/4 / 1/8 Swagelok
Hydrocarbon Content <0.1 ppm (as Methane)
Output Pressure 4-7 kg/cm (adjustable)
Operating Humidity Up to 70% RH
Output Purity >99.999% Hydrocarbon Free Air
Noise Level <55 dB
Compatible Instruments GC, FID, NPD, and all Laboratory Analyzers
Safety Fitted with overload protector and safety interlock
Replaceable Filters Inlet, Outlet, and Hydrocarbon
Start-up Time <10 minutes

Zero Air Gas Generator Product Specifications

Frequency 50 Hz
Equipment Materials Mild Steel/SS Powder Coated
Model No ZAG Series
Power Source Electric
Feature Low Noise, High Purity, Wall Mounting/benchtop models available
Type Zero Air Gas Generator
Measurement Range 0-100 LPM
Automation Grade Fully Automatic
Usage Industrial Laboratory Applications
Display Type Digital Display
Temperature Range 5C to 40C
Core Components Compressor, Filters, Column, DRYER, Auto Control System
Weight Approx. 30-100 kg (varies by model)
Capacity 1 to 100 LPM
Accuracy <0.1 ppm Hydrocarbon
Voltage 220V-240V AC
Dimension (L*W*H) 600 mm x 350 mm x 600 mm (approx.)

Cooling System Air cooled
Outlet Connection 1/4 / 1/8 Swagelok
Hydrocarbon Content <0.1 ppm (as Methane)
Output Pressure 4-7 kg/cm (adjustable)
Operating Humidity Up to 70% RH
Output Purity >99.999% Hydrocarbon Free Air
Noise Level <55 dB
Compatible Instruments GC, FID, NPD, and all Laboratory Analyzers
Safety Fitted with overload protector and safety interlock
Replaceable Filters Inlet, Outlet, and Hydrocarbon
Start-up Time <10 minutes

Product Description

Zero Air Gas Generator eliminates the need for cumbersome air cylinders, which are harmful to laboratory operations. Hydrocarbons, CO2, NOx, and H20 are totally removed from the air stream using these generators. Zero air is clean, dry, hydrocarbon-free, and pollutant-free air that is employed for analytical purposes in many labs. Zero Air Gas Generator is checked under various parameters to ensure its high quality and excellent durability. Hydrocarbons are prevalent in the air and may have an impact on analytical results.

Exceptional Purity and Versatility

With output purity of over 99.999% and hydrocarbon content below 0.1 ppm, this gas generator ensures contamination-free performance for high-sensitivity instruments. Its fully automatic operation, adjustable pressure and flow, and compatibility with a wide spectrum of laboratory analyzers make it essential for both industrial and research settings.

User-Friendly and Reliable Operation

Engineered with a digital display, quick start-up time under 10 minutes, and noise levels below 55 dB, the ZAG Series prioritizes user convenience and comfort. Safety features like overload protection and interlocks, along with an air-cooled system, guarantee dependable performance during intensive laboratory routines.

Efficient Design and Flexible Installation

The compact, durable construction with powder-coated mild steel/stainless steel fits easily onto a wall or benchtop. Replaceable filters at the inlet, outlet, and hydrocarbon stages ensure consistent air quality, while the adjustable settings and auto-control system allow seamless integration into diverse laboratory processes.

FAQ's of Zero Air Gas Generator:

Q: How does the Zero Air Gas Generator achieve hydrocarbon-free air?

A: The generator uses advanced filtration and catalytic technologies to remove hydrocarbons, achieving purity levels greater than 99.999% and hydrocarbon content below 0.1 ppm (as methane). Replaceable inlet, outlet, and hydrocarbon filters ensure consistent, contaminant-free air supply.

Q: What are the primary benefits of using this gas generator in laboratories?

A: This generator offers high-purity, hydrocarbon-free air essential for precise GC, FID, NPD, and analytical measurements. It features low noise (<55 dB), quick start-up, fully automatic controls, and robust safety systems to enhance laboratory productivity and safety.

Q: When should I replace the filters in the Zero Air Gas Generator?

A: Filters should be replaced according to usage intensity or as indicated by the maintenance guidelines in the manual to maintain optimal air purity. Regular checks ensure reliability for sensitive analytical applications.

Q: Where can the Zero Air Gas Generator be installed?

A: The generator is designed for flexibility and can be wall-mounted or placed on a benchtop. Its dimensions (approximately 600 mm x 350 mm x 600 mm) and sturdy construction support installation in a wide range of laboratory and industrial environments.

Q: What is the start-up process and operating range for this equipment?

A: The Zero Air Gas Generator features an automatic start-up that takes less than 10 minutes. It operates efficiently within a temperature range of 5C to 40C and up to 70% RH humidity.

Q: How is output pressure and flow controlled on this model?

A: Both output pressure (adjustable from 4-7 kg/cm2) and flow rate (1-100 LPM range) can be easily set according to specific instrument requirements, ensuring optimal performance for various laboratory analyzers.

Q: What makes this generator reliable for continuous laboratory use?

A: Its air-cooled design, overload protection, safety interlocks, and durable powder-coated construction, along with a fully automatic auto-control system, make the ZAG Series dependable for continuous, demanding laboratory applications.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Laboratory Scale Zero Air Gas Generators' category

Zero Air Gas Generator (without Air Compressor) - Model : ZA-4000 Price : 198600 INR/Number Minimum Order Quantity : 1 Voltage : 230V AC Dimension (L*W*H) : 420 x 280 x 555 mm Core Components : Air Purification Cartridge, Catalyst, Filters Weight : Approx. 35 kg Capacity : 4000 ml/min Accuracy : 99.999% purity output Temperature Range : 10C to 40C Display Type : Digital LED panel Power Source : Electric Frequency : 50 Hz Automation Grade : Fully automatic Usage : Analytical laboratories, GC/ FID/ NPD/ FPD applications Type : Zero Air Gas Generator (without Air Compressor) Measurement Range : 0 4000 ml/min Feature : Low noise operation, Maintenancefree Equipment Materials : Powder coated mild steel cabinet Model No : ZA4000

Send Inquiry

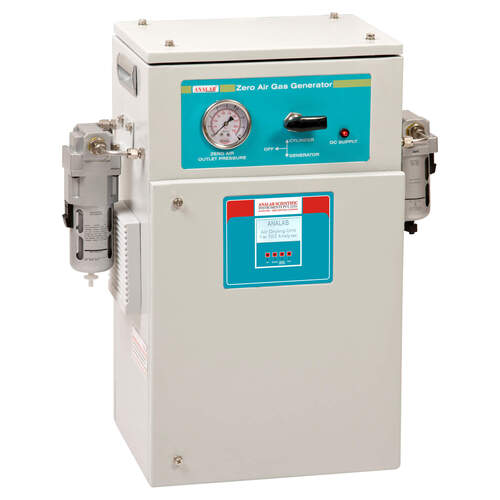

Zero Air Gas Generator (without Air Compressor) - Model : ZA-10L Price : 248600 INR/Number Minimum Order Quantity : 1 Voltage : 230V AC Dimension (L*W*H) : 45 x 30 x 45 cm Core Components : Catalyst, Heating System, Control Panel Weight : 20 kg (Approx) Capacity : 10 Liters/Min Accuracy : Hydrocarbon Removal Efficiency >99.9% Temperature Range : Ambient to 50C Display Type : LED Display Power Source : Electric Frequency : 50 Hz Automation Grade : Automatic Usage : Laboratory/Analytical Instruments Type : Zero Air Gas Generator (without Air Compressor) Measurement Range : Hydrocarbon Content <0.1 ppm Feature : Removes Hydrocarbons to <0.1 ppm Equipment Materials : Stainless Steel Model No : ZA10L
