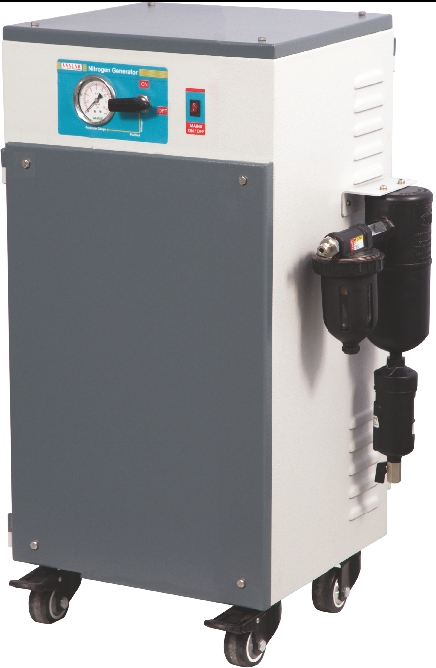

Nitrogen Gas Generator (without Air Compressor) - Model : N-4000

Nitrogen Gas Generator (without Air Compressor) - Model : N-4000

260600.0 INR/Number
Get a Price/Quote

Product Details:

  • Accuracy Up to 99.99% Nitrogen Purity
  • Feature Automatic Operation, Low Maintenance, Compact Design
  • Automation Grade Fully Automatic
  • Capacity 4000 Liters/Hour
  • Power Source Electric
  • Voltage 230V AC
  • Temperature Range 5C to 45C
  • Click to View more
Request to Call Back Send Inquiry
X

Nitrogen Gas Generator (without Air Compressor) - Model : N-4000 Price And Quantity

  • 260600.0 INR/Number
  • 1 Number
  • Less than 1%
  • Electronics, Food Packaging, Chemical, Pharmaceutical, Laser Cutting
  • Provided (Inline Digital Display)
  • 1/2 inch BSP
  • 7-10 bar
  • 5-7 bar (Adjustable)
  • Skid Mounted, Plug & Play
  • Air Cooled
  • Easy Access Doors, Minimal Consumables
  • Dry, Oil-free Compressed Air
  • Pressure Swing Adsorption using Carbon Molecular Sieve (CMS)
  • Up to 85% RH (Non-condensing)
  • < 60 dB
  • Available (Onsite & Remote Assistance)

Nitrogen Gas Generator (without Air Compressor) - Model : N-4000 Product Specifications

  • Up to 99.99% Nitrogen Purity
  • Automatic Operation, Low Maintenance, Compact Design
  • Fully Automatic
  • 900 mm x 650 mm x 1600 mm
  • Electric
  • 4000 Liters/Hour
  • Industrial/ Laboratory Applications
  • 230V AC
  • PSA (Pressure Swing Adsorption) Nitrogen Gas Generator
  • 5C to 45C
  • N-4000
  • Molecular Sieve Columns, Control Valves, PLC Controller
  • 250 kg
  • Digital
  • 50 Hz
  • Nitrogen Purity 95%99.99%
  • Mild Steel Powder Coated
  • Less than 1%
  • Electronics, Food Packaging, Chemical, Pharmaceutical, Laser Cutting
  • Provided (Inline Digital Display)
  • 1/2 inch BSP
  • 7-10 bar
  • 5-7 bar (Adjustable)
  • Skid Mounted, Plug & Play
  • Air Cooled
  • Easy Access Doors, Minimal Consumables
  • Dry, Oil-free Compressed Air
  • Pressure Swing Adsorption using Carbon Molecular Sieve (CMS)
  • Up to 85% RH (Non-condensing)
  • < 60 dB
  • Available (Onsite & Remote Assistance)

Nitrogen Gas Generator (without Air Compressor) - Model : N-4000 Trade Information

  • mundra
  • Cash Advance (CA)
  • 10 Number Per Month
  • 2 Week
  • Yes
  • Contact us for information regarding our sample policy
  • Yes
  • North America, South America, Eastern Europe, Western Europe, Middle East, Africa, Asia, Australia, Central America
  • All India
  • Yes

Product Description

Supplied with 40 Air Filter with Auto Drain at Inlet & 0.01 Mist Filter at Outlet to Remove Moisture, Dust & Mist, Inline Particulate Filter, Power Cord, Instruction & Operation Manual, Calibration Test Certificate (Without Traceability Document) and Warranty Card.

  • Capacity of Gas: 300 ml/min at 6 Kg/cm2 Model: N-300 (Suitable for two GC)
  • Capacity of Gas: 800 ml/min at 6 Kg/cm2 Model: N-800 (Suitable for five GC)
  • Capacity of Gas: 2000 ml/min at 6 Kg/cm2 Model: N-2000
  • Capacity of Gas: 4000 ml/min at 6 Kg/cm2 Model: N-4000

      • (Customized Nitrogen Gas Generator price will be offered on request)

      Technical Specification

      • Moisture Content : < 2 ppm
      • Oxygen : < 5 ppm
      • CO & CO2 : < 1 ppm
      • Total Hydro Carbon : < 0.5 ppm
      • Micron Particulates : 0.01 Micron
      • Purity of Nitrogen Gas : 99.999% - UHP / GC Grade
      • Method of Generation Technic : Pressure Swing Adsorption (PSA)
      • Connection & SS Tube : 1/4
      • Room Temperature : 5 - 40C
      • Catalyst Cylinder : 3 made up of Stainless Steel - For N-300
      • Catalyst Cylinder : 4 made up of Stainless Steel - For Other Models
      • Dimensions (L x W x H) : 350 x 300 x 600 mm - For N-300
      • Dimensions (L x W x H) : 380 x 350 x 800 mm - For Other Models
      • Power Supply : 230VAC 10%, 50Hz
      • REQUIRES OIL FREE AIR COMPRESSOR FOR ABOVE GAS GENERATOR


Reliable PSA Nitrogen Generation

The N-4000 uses advanced Pressure Swing Adsorption (PSA) with Carbon Molecular Sieve technology to consistently produce high-purity nitrogen gas. This technique ensures oxygen content remains below 1% and offers an adjustable nitrogen output pressure, making it ideal for sensitive industrial and laboratory requirements.


User-Friendly Operation & Maintenance

Designed with fully automatic controls and a digital purity indicator, the N-4000 guarantees ease of use. The compact, skid-mounted system features easy-access doors and minimal consumable parts, allowing for straightforward maintenance and quick installation, making it perfectly suited to demanding work environments.


Versatile Applications Across Industries

With a capacity of 4000 liters per hour, the N-4000 is tailored for sectors like electronics, food packaging, chemical processing, pharmaceuticals, and laser cutting. Its robust yet low-noise design, precise purity monitoring, and compatibility with various air supplies ensure it integrates seamlessly into a broad range of settings.

FAQs of Nitrogen Gas Generator (without Air Compressor) - Model : N-4000:


Q: How does the N-4000 Nitrogen Gas Generator produce high-purity nitrogen?

A: The N-4000 employs Pressure Swing Adsorption (PSA) technology with carbon molecular sieve columns. This process separates nitrogen from oxygen and other gases in the supplied dry, oil-free compressed air, delivering nitrogen with purity up to 99.99% and oxygen content below 1%.

Q: What are the installation requirements for the N-4000 nitrogen generator?

A: Installation is straightforward thanks to the skid-mounted, plug-and-play design. The unit requires a supply of clean, dry, oil-free compressed air at a pressure between 7 and 10 bar, along with a 230V AC electrical connection. No additional foundation or complex setup is necessary.

Q: When is service support or maintenance recommended for this generator?

A: Regular maintenance involves simple checks, such as monitoring the inline digital purity display, ensuring the inlet air is of required quality, and inspecting the filter and molecular sieve conditions periodically. Service support is available both onsite and remotely to address any technical issues.

Q: Where can the N-4000 be effectively used?

A: The N-4000 is designed for use in industrial and laboratory settings, including electronics manufacturing, food packaging, chemical plants, pharmaceutical production, and laser cutting facilities. Its compact footprint allows installation in limited spaces.

Q: What benefits does the N-4000 offer compared to conventional nitrogen supply methods?

A: The N-4000 provides uninterrupted, onsite nitrogen production, eliminating reliance on delivered cylinders. This results in reduced operational costs, improved safety, and consistent gas quality tailored to your applications needs.

Q: How is the nitrogen purity monitored and ensured in the N-4000 model?

A: An inline digital purity indicator continuously displays the nitrogen quality, allowing instant verification that your output meets application-specific requirements. The automation and PLC control further guarantee reliable, consistent operation.

Q: What is involved in the routine usage of this nitrogen generator?

A: Routine use includes starting the system via its automatic controls, ensuring an adequate compressed air supply, and periodically checking the digital display for purity levels. The automatic operation and minimal consumable use keep day-to-day management simple.

Tell us about your requirement
product

Price:

Quantity
Select Unit

  • 50
  • 100
  • 200
  • 250
  • 500
  • 1000+
Additional detail
Mobile number

Email

Other Products in 'Laboratory Scale Nitrogen Gas Generators' category

Nitrogen Gas Generator Equipment
Send Inquiry
Nitrogen Generator Equipment
Send Inquiry

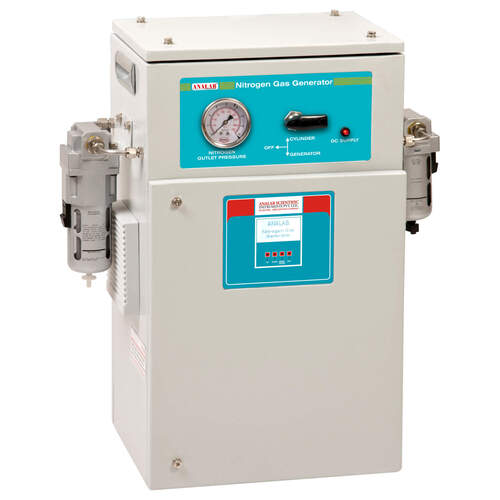

Nitrogen Gas Generator (without Air Compressor) - Model : N-40L
