Nitrogen Gas Generator Equipment

Name: Nitrogen Gas Generator Equipment
Brand: ANALAB SCIENTIFIC INST. PVT. LTD.
Price: 167600 INR
Availability: InStock

167600 INR/Number

Get a Price/Quote

Product Details:

Accuracy Up to 99.99% purity
Capacity 2 Nm3/hr to 500 Nm3/hr
Automation Grade Semi-Automatic
Frequency 50 Hz
Temperature Range 5C to 45C
Power Source Electric
Model No NGG-PSA-2024
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Nitrogen Gas Generator Equipment Price And Quantity

Price 167600 INR/Number
Minimum Order Quantity 1 Number

Operational Mode Continuous / On Demand
Air Requirement Depends on generator capacity
Installation Skid Mounted
Noise Level Below 65 dB
Safety Features Overpressure Protection, Emergency Stop
Maintenance Interval Every 6 months
Flow Control Microprocessor Controlled
Nitrogen Purity 95% to 99.99%
Pressure Range 4 to 10 kg/cm2
Cooling System Air Cooled
Service Support Onsite and Remote Assistance
Ambient Humidity < 90% RH
Startup Time Less than 10 minutes
Outlet Connection 1-inch BSP
Life Expectancy Over 10 years with regular maintenance

Nitrogen Gas Generator Equipment Product Specifications

Type PSA Nitrogen Gas Generator
Usage Industrial Applications
Core Components Carbon Molecular Sieve, Air Compressors, Pneumatic Valves
Measurement Range 0.1% to 99.99% Nitrogen
Dimension (L*W*H) 1800mm x 900mm x 1600mm
Voltage 220 V / 380 V
Feature Low Maintenance, High Purity Output, Continuous Operation
Accuracy Up to 99.99% purity
Weight 400 kg (approx., varies as per model)
Temperature Range 5C to 45C
Display Type Digital and Analog
Equipment Materials Mild Steel with Powder Coating
Model No NGG-PSA-2024
Power Source Electric
Automation Grade Semi-Automatic
Capacity 2 Nm3/hr to 500 Nm3/hr
Frequency 50 Hz

Operational Mode Continuous / On Demand
Air Requirement Depends on generator capacity
Installation Skid Mounted
Noise Level Below 65 dB
Safety Features Overpressure Protection, Emergency Stop
Maintenance Interval Every 6 months
Flow Control Microprocessor Controlled
Nitrogen Purity 95% to 99.99%
Pressure Range 4 to 10 kg/cm2
Cooling System Air Cooled
Service Support Onsite and Remote Assistance
Ambient Humidity < 90% RH
Startup Time Less than 10 minutes
Outlet Connection 1-inch BSP
Life Expectancy Over 10 years with regular maintenance

Product Description

Spotlight your operations with the NGG-PSA-2024 Nitrogen Gas Generator, engineered for industrial applications seeking incomparably pure nitrogen. This special equipment offers an astonishing pressure range of 4-10 kg/cm2 and delivers sterling gas purity levels between 95% and 99.99%. Thanks to microprocessor-controlled flow and robust safety features, continuous or on-demand operation is both effortless and efficient. The low-maintenance, air-cooled generator runs quietly below 65 dB and boasts a lifespan exceeding 10 years. Its clearance-to-install skid design and superior onsite/remote support ensure seamless integration and performance at every stage.

Nitrogen Gas Generator: Applications and Usage

This PSA Nitrogen Gas Generator is extensively used across industrial sectors for applications such as inerting, blanketing, and laser cutting. Suitable for continuous and on-demand usage, it meets high-volume, high-purity nitrogen requirements. Its reliable operation, semi-automatic controls, and robust build make it ideal for manufacturing, chemical processing, pharmaceuticals, and electronics. The generator's easy integration and rapid setup allow it to adapt efficiently to diverse operational needs.

Supply Ability, Sample Policy, and Freight Options

We deliver Nitrogen Gas Generator Equipment with exceptional drop-off reliability and supply capacity ranging from small-scale to large bulk requirements. With sample units available upon request, clients can evaluate suitability prior to purchase. Freight services include secure packaging and prompt delivery to the designated FOB Port, ensuring equipment arrives safely and ready for installation. Our streamlined logistics minimize lead times and prioritize customer convenience for both domestic and export shipments.

FAQ's of Nitrogen Gas Generator Equipment:

Q: How does the PSA Nitrogen Gas Generator achieve high purity nitrogen output?

A: The generator uses carbon molecular sieves and microprocessor control to separate nitrogen from compressed air, ensuring purity levels up to 99.99%. Continuous monitoring and automation optimize the process for quality and efficiency.

Q: What applications is this nitrogen generator suitable for?

A: It is ideal for applications including laser cutting, chemical processing, electronics manufacturing, pharmaceuticals, and any industrial usage requiring high-purity nitrogen for inerting or blanketing.

Q: Where can this equipment be installed and what is the installation process?

A: The skid-mounted design allows flexible installation at industrial sites. Our service team provides onsite guidance for setup, ensuring quick startup-typically under 10 minutes-and seamless integration with existing systems.

Q: When is maintenance required for optimal performance?

A: Scheduled maintenance is recommended every six months to ensure longevity and performance. Regular checks help maintain purity accuracy and safe operational standards.

Q: What safety features are integrated in the nitrogen generator?

A: It includes overpressure protection, emergency stop functionality, and robust onsite/remote support to maximize operational safety and quick response during any emergency.

Tell us about your requirement

Price:

Quantity

Select Unit

50
100
200
250
500
1000+

Additional detail

Mobile number

Other Products in 'Laboratory Scale Nitrogen Gas Generators' category

Nitrogen Generator Price : 185600.0 INR/Number Minimum Order Quantity : 1 Type : PSA Nitrogen Generator Voltage : 220240 V Volt (v) Accuracy : 99.99% % Weight : 650 kg Kilograms (kg) Display Type : Digital Model No : NG05 Power Source : Electric Equipment Materials : Mild Steel (MS) Capacity : 5 Nm3/h m3/hr Usage : Industrial Core Components : Adsorption Tower, Control Panel, Air Receiver Dimension (L*W*H) : 1500 mm x 1100 mm x 2100 mm Meter (m) Measurement Range : Up to 99.99% Nitrogen Purity Feature : Automatic Operation Temperature Range : 5 C to 45 C Celsius (oC) Automation Grade : Automatic Frequency : 50 Hz Hertz (HZ)

Send Inquiry

Nitrogen Generator Equipment Price : 380600.0 INR/Number Minimum Order Quantity : 1 Type : PSA (Pressure Swing Adsorption) Nitrogen Generator Voltage : 220V/380V Accuracy : Above 99% Weight : 1200 kg (approx. for standard size) Display Type : Digital Model No : NGPSA100 Power Source : Electric Equipment Materials : Stainless Steel / Mild Steel Capacity : 1 Nm3/hr to 300 Nm3/hr Usage : Industrial Oxygen and Nitrogen Generation Core Components : Air Compressor, Dryer, Control Panel, Carbon Molecular Sieve (CMS) Dimension (L*W*H) : 2000 mm x 1500 mm x 1900 mm Measurement Range : 1 ppm to 99.999% Nitrogen Purity Feature : Continuous supply of Nitrogen, High Purity Output Temperature Range : 5C to 50C Automation Grade : Automatic Frequency : 50 Hz

Send Inquiry

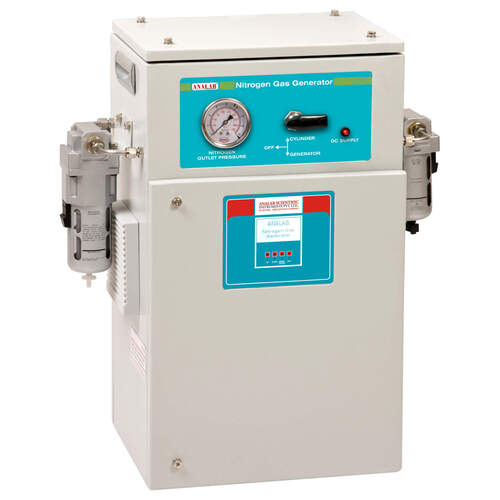

Nitrogen Gas Generator (without Air Compressor) - Model : N-4000 Price : 260600.0 INR/Number Minimum Order Quantity : 1 Type : PSA (Pressure Swing Adsorption) Nitrogen Gas Generator Voltage : 230V AC Accuracy : Up to 99.99% Nitrogen Purity Weight : 250 kg Display Type : Digital Model No : N4000 Power Source : Electric Equipment Materials : Mild Steel Powder Coated Capacity : 4000 Liters/Hour Usage : Industrial/ Laboratory Applications Core Components : Molecular Sieve Columns, Control Valves, PLC Controller Dimension (L*W*H) : 900 mm x 650 mm x 1600 mm Measurement Range : Nitrogen Purity 95%99.99% Feature : Automatic Operation, Low Maintenance, Compact Design Temperature Range : 5C to 45C Automation Grade : Fully Automatic Frequency : 50 Hz
