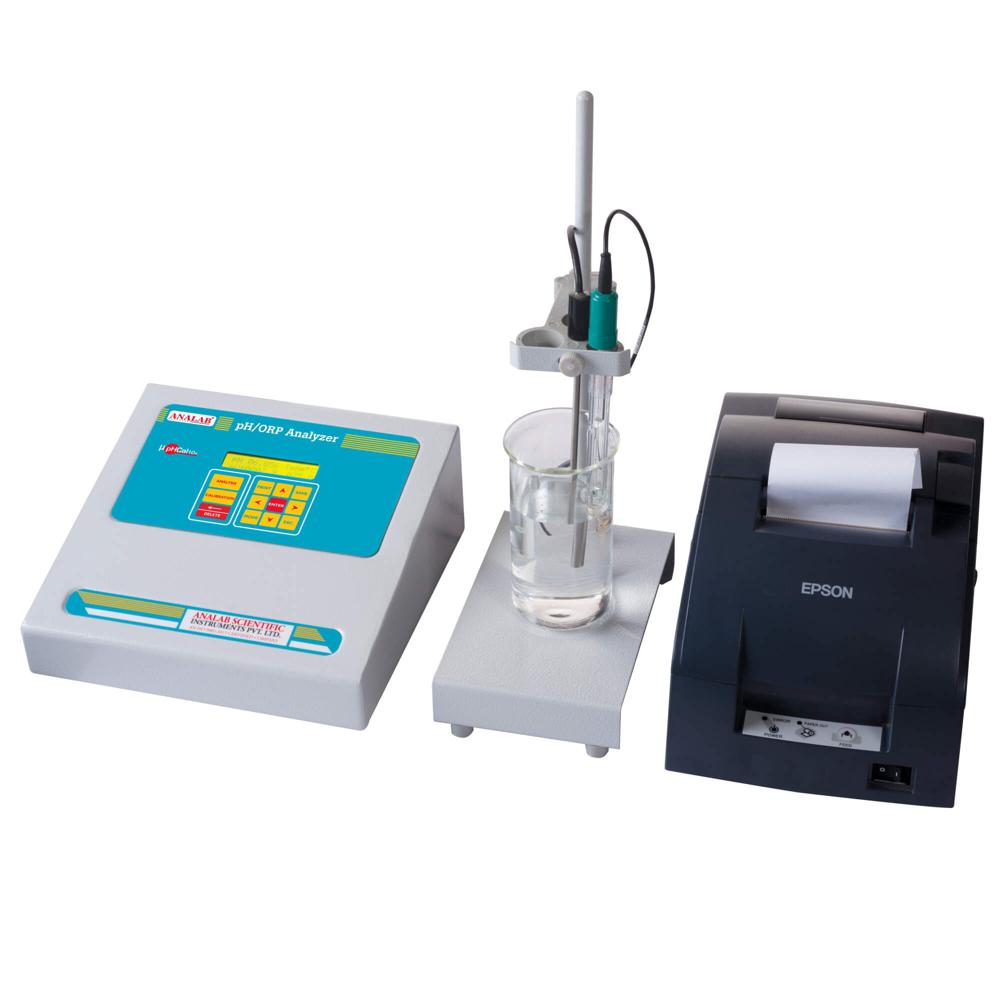

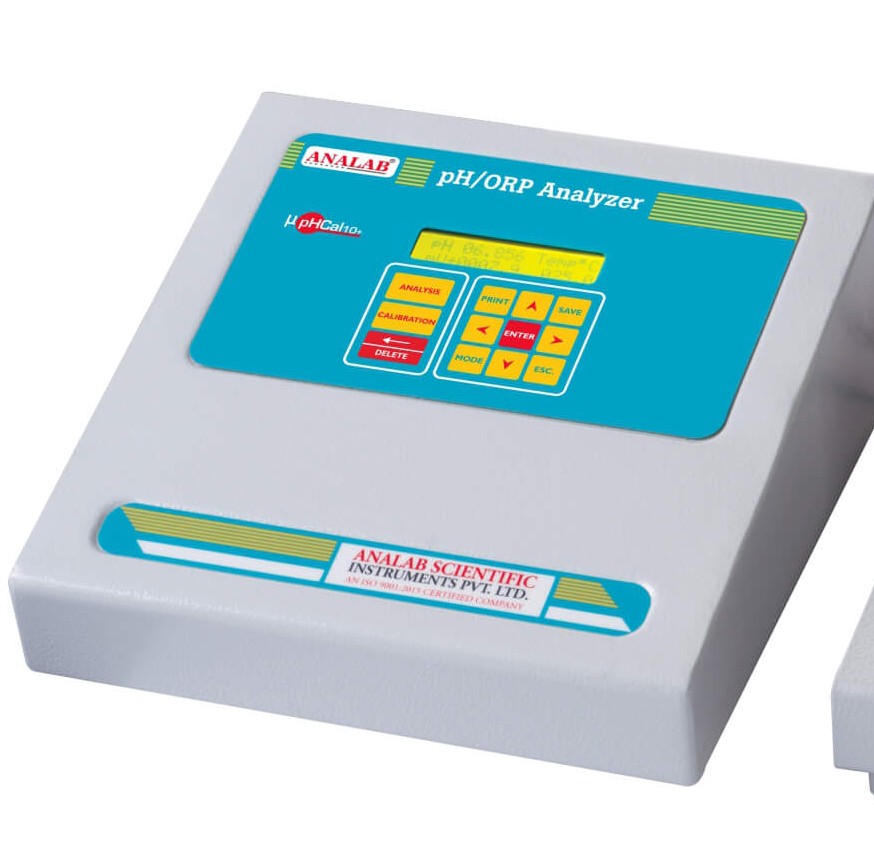

pH/mV/Temp/ORP Analyzer (Three/Five Point Calibration)
30800.0 INR/Number
Product Details:
- Capacity Measurement: pH, mV, ORP, and Temperature
- Measurement Range pH: 0.00-14.00, mV: 1999 mV, ORP: 2000 mV, Temp: 0C-100C
- Automation Grade Automatic Calibration
- Core Components Microprocessor, Electrodes, Sensor, LCD Display
- Model No pHCal10+
- Feature Three/Five Point Calibration, Auto Temperature Compensation, Data Hold
- Frequency 50/60 Hz
- Click to View more
X
pH/mV/Temp/ORP Analyzer (Three/Five Point Calibration) Price And Quantity
- 30800.0 INR/Number
- 1 Number
pH/mV/Temp/ORP Analyzer (Three/Five Point Calibration) Product Specifications
- pHCal10+
- Microprocessor, Electrodes, Sensor, LCD Display
- Laboratory & Industrial Process Monitoring
- Automatic Calibration
- Measurement: pH, mV, ORP, and Temperature
- pH: 0.00-14.00, mV: 1999 mV, ORP: 2000 mV, Temp: 0C-100C
- pH: 0.01 pH, mV: 1 mV, Temp: 0.5C
- Approx. 1.2 kg
- AC Mains or Battery (optional)
- 220 V AC
- LCD Display
- ABS & Polycarbonate housing
- 0C to 100C
- 190 x 130 x 85 mm
- 50/60 Hz
- pH/mV/Temp/ORP Analyzer
- Three/Five Point Calibration, Auto Temperature Compensation, Data Hold
- >10^12
- Automatic/Manual Temperature Compensation
- 85% RH
- BNC & 2mm Banana
- IP54 splash-proof
- Three-Point or Five-Point Selectable
- pH: 0.01, mV: 1 mV, Temp: 0.1C
- RS232/USB (optional)
pH/mV/Temp/ORP Analyzer (Three/Five Point Calibration) Trade Information
- 1 Week
Product Description
Model : pHCal10+ | Make : ANALAB | HSN Code : 90278990
Supplied with Combination Glass pH Electrode (0-70C), Standard Buffer Tablets (7.00 pH, 4.01 pH & 9.18 pH), Temperature Probe, Electrode Stand consists of Clamp, Base Plate & Rod, Dust Cover, DC Adaptor, Operational & Instruction Manual with SOP, Calibration Test Certificate (Without Traceability Document) and Warranty Card.
Technical Specification
- pH Range : -2.000 to 20.000 pH
- Selectable Resolution : 0.1 / 0.01 / 0.001 pH
- Relative Accuracy : 0.02 / 0.002 pH
- mV / ORP Range mV / RmV : 2000.0
- ORP : EH auto calibration to standard hydrogen electrode
- Resolution : 0.1
- Relative Accuracy : 0.2 mV OR 0.05%, whichever is greater
- Temperature Range : -5.0 to 130.0C
- Resolution : 0.1C
- Relative Accuracy : 0.1C
- Temperature Compensation : Auto / Manual
- Temperature Calibration : In-built software and can be calibrated by users
- Slope : 80-120 %
- Total Numbers of Slope : 4 slopes for Five-point calibration & 2 slopes for Three-point calibration.
- Auto Buffer Recognition :
1) 4.01, 6.86 / 7.00, 9.18 / 10.01 pH @25C for Three points.
2) 1.68, 4.01, 6.86 / 7.00, 9.18 / 10.01 & 12.45 pH @25C for Five points. - Calibration Reminder Alarm : 0-99 hours
- Display Reading : Simultaneous - pH, mV & Temperature.
- Buffer Standard : US / NIST & EURO
- Error Messages : Bad Buffer / Electrode, Temperature Probe Error, In-complete Calibration, Calibration Due, Low Memory & pH Over Range.
- Short Link : Provided to diagnose the problem either with Instrument OR Electrode.
- Display : 16 x 2 Line Alphanumeric Backlit LCD
- Keypad : Membrane waterproof polycarbonate soft touch keypad compliance to UL/ROHS
- Calibration Data Storage : Non Volatile Memory which can store, print & view calibration date & time, calibration point, pH, mV, temperature, % slope, instrument ID, model name etc.
- Analysis Data Storage :More than 500analysis data which can be viewed & Print, company name, analysis date & time, record number, *Username, *Sample Name, *Bath Number/ID, pH, mV, temperature reading, Corresponding Calibration Data, instrument serial number, Instrument Make & Model & *Signature etc. Secondly, analysis data can be print online without saving analysis data in Instrument.
(*: Not possible to enter data by instrument keypad but it will be handwritten) - Searching of data : With record number by scrolling.
- Report Formation : As per Non-GLP Compliance
- Printer Interface : Centronics Parallel Port / Serial (RS-232 C) Port
- Printer : 40 / 80 Column Dot Matrix Printer(Printer to be procure optionally)
- Power Supply : DC Adaptor
- Dimensions:
Net Dimension: 22 x 21 x 11 cm (L x W x H)
Gross Dimension: 32 x 29 x 23 cm (L x W x H) - Weight:
Net Weight: 1.5 kg
Gross Weight: 3.5kg
Precision Meets Versatility
The pHCal10+ combines multi-parameter measurement capabilities with flexible calibration options, making it an essential tool for both research laboratories and industrial process control. Its high-resolution readings for pH, mV, ORP, and temperature help ensure accurate analytics, while robust material construction ensures enduring performance in challenging conditions.
Smart Design for User Ease
Designed for straightforward operation, the analyzer features an intuitive LCD screen and simple electrode connectivity with BNC and 2mm banana plugs. The splash-proof IP54 protection and compact build support reliable use in diverse environments, and its manual or automatic temperature compensation adapts easily to various sample conditions.
Effortless Data Management
With optional RS232 or USB interfaces for data output, transferring measurement results is convenient and efficient. Whether tracking ongoing process changes or recording laboratory tests, the pHCal10+ supports streamlined documentation, empowering users to focus on analysis rather than data handling.
FAQ's of pH/mV/Temp/ORP Analyzer (Three/Five Point Calibration):
Q: How do I perform a three-point or five-point calibration with the pHCal10+ analyzer?
A: To calibrate, select either three-point or five-point calibration mode from the menu. Follow the on-screen prompts to immerse the electrode in standard buffer solutions of known pH values. The analyzer will guide you through each step, ensuring precise calibration for optimal measurement accuracy.Q: What are the benefits of automatic temperature compensation on this device?
A: Automatic temperature compensation allows the analyzer to adjust readings based on sample temperature fluctuations, ensuring consistently accurate results. This feature reduces manual intervention and improves reliability, especially when measuring samples at varying temperatures.Q: When should I choose between RS232 and USB optional data outputs?
A: Select RS232 output if you need to connect the analyzer to legacy laboratory systems or industrial data loggers. USB output is ideal for direct connection to modern computers, simplifying data transfer and archiving. Choose based on your existing equipment and workflow requirements.Q: Where can the pHCal10+ analyzer be used effectively?
A: This analyzer is suitable for laboratory research, industrial process monitoring, quality control, and educational applications. Its IP54 splash-proof rating and durable construction make it reliable for both controlled and industrial environments.Q: What process does the microprocessor in this analyzer support?
A: The microprocessor manages signal processing, calibration routines, measurement calculations, data storage, and display functions. It ensures reliable operation, precise measurements, and automation for ease of use.Q: How does the data hold feature enhance usage?
A: The data hold function allows users to freeze a measurement on the display, making it easier to record or review results. This is particularly useful when measurements need to be observed or documented before being reset for another test.Q: What are the main benefits of using the pHCal10+ for industrial and laboratory applications?
A: The pHCal10+ delivers high accuracy, versatile measurement capabilities, robust protection, and multiple connectivity options. Its automatic calibration and temperature compensation save time while increasing reliability, making it highly beneficial for both routine measurements and process monitoring.Tell us about your requirement
