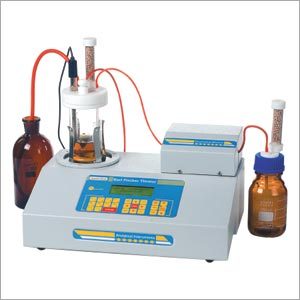

Karl Fischer Titration

Get a Price/Quote

Product Details:

Automation Grade Semi Automatic
Voltage 230V AC
Temperature Range Room Temperature (5C to 45C)
Frequency 50/60 Hz
Core Components Burette, Electrode, Stirrer, Reagent Bottle
Capacity Sample 1 mg 100 g
Model No KF 101
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Karl Fischer Titration Product Specifications

Temperature Range Room Temperature (5C to 45C)
Voltage 230V AC
Dimension (L*W*H) 350 x 275 x 175 mm
Equipment Materials Stainless Steel, Powder Coated Body
Automation Grade Semi Automatic
Display Type Digital LCD Display
Type Karl Fischer Titration Apparatus
Feature Auto End Detection, Moisture Range Programming
Power Source AC Mains
Accuracy 0.01% moisture detection
Measurement Range 1 ppm to 100%
Model No KF 101
Capacity Sample 1 mg 100 g
Core Components Burette, Electrode, Stirrer, Reagent Bottle
Frequency 50/60 Hz

Product Description

Owing to our proficiency in this domain, we are affianced in offering high quality range of Karl Fischer Titration. Manufactured by our adroit experts using high quality materials and the advanced technology as per the industry standards, this is strictly examined on different parameters. Furthermore, this Karl Fischer Titrationis ideal for determining the trace amounts of water in a sample.

Features:

Unmatched performance
Long service life
Robust in construction

Accessories

250ml Reaction Vessel
Dual Platinum Electrode
PTFE Paddle PTFE Assembly
Moisture Trap for Reaction Vessel & 250ml Amber Reservoir Bottle
Dispensing Tube (02 Nos)
PTFE Tubing for Dispensing Path
Operational & Instruction Manual
Manufacturer Test Certificate and Warranty Card.

Technical Specification

Method of Detection :Conductometric
Backlit LCD Display :20 x 4 Line Alphanumeric
Range of Moisture Detection : Less than 10 PPM to 100%
Display of Reading :Direct Reading of Moisture in PPM, Percentage(%) & mg/ml of water
Dispenser :Motorized Dispensing for low and accurate measurement of reagent.
Electrode :Dual Platinum Electrode.
Interface :Serial & Parallel Port for PC & Dot-matrix Printer attachment.
Stirring Time :00:00 to 99:00 (Minutes : Second) - Users Adjustable
End Point Time :1-99 Seconds , Users Adjustable
End Point Sensitivity of Moisture Detection :Users Adjustable
Calibration Reminder Alarm :0-99 hours
Data Storage :More than 100 Analysis data with corresponding calibration data.
Input :Electrode Connector
Power supply :230 VAC + 10%, 50 Hz

Versatile Moisture Analysis

With a measurement range from 1 ppm to 100% moisture, the Karl Fischer Titration Apparatus accommodates a wide array of sample types, from minute pharmaceutical powders to larger food and chemical samples. This versatility makes it ideal for industries demanding high-precision moisture content assessment.

User-Friendly Digital Interface

The apparatus boasts a clear digital LCD display and incorporates auto end detection for enhanced convenience and reduced user error. Moisture range programming further streamlines the titration process, allowing users to customize parameters according to specific testing requirements.

Robust Construction, Reliable Performance

Crafted from stainless steel and protected with a powder-coated body, the system is both durable and easy to maintain. Its core componentsburette, electrode, stirrer, and reagent bottleare engineered for superior accuracy even in frequent-use environments.

FAQs of Karl Fischer Titration:

Q: How does the Karl Fischer Titration Apparatus determine moisture content in samples?

A: The KF 101 uses the Karl Fischer titration methoda chemical process tailored to accurately measure water content in various substances. This is achieved by introducing Karl Fischer reagent to the sample, and the end point is automatically detected, ensuring precise results.

Q: What is the capacity range for sample sizes that this apparatus can measure?

A: This model can handle sample weights from as low as 1 mg up to 100 g, making it suitable for both low- and high-volume laboratory applications.

Q: When is it recommended to use the Karl Fischer Titration Apparatus?

A: This apparatus is used whenever accurate moisture analysis is essential, such as during quality control, raw material testing, and production monitoring across pharmaceutical, chemical, food, and related industries.

Q: Where can this apparatus be used and what power source does it require?

A: It is suitable for laboratory settings in industrial, academic, or research institutions. The apparatus operates on 230V AC mains and is designed to function within a temperature range of 5C to 45C.

Q: What key components are included in the system and what role do they play?

A: Major components include a burette (for titrant dispensing), an electrode (for endpoint detection), a stirrer (for sample homogenization), and a reagent bottle. Together, they ensure accurate, reliable, and repeatable titration results.

Q: How does the auto end detection feature benefit the user?

A: Auto end detection automatically identifies the titration endpoint, streamlining the process, minimizing human error, and improving result accuracy and consistency.

Q: What is the accuracy of the KF 101 and what does this mean for users?

A: The apparatus boasts an accuracy of 0.01% moisture detection, meaning users can trust its results even where minimal moisture levels must be precisely quantified, ensuring product quality and regulatory compliance.
