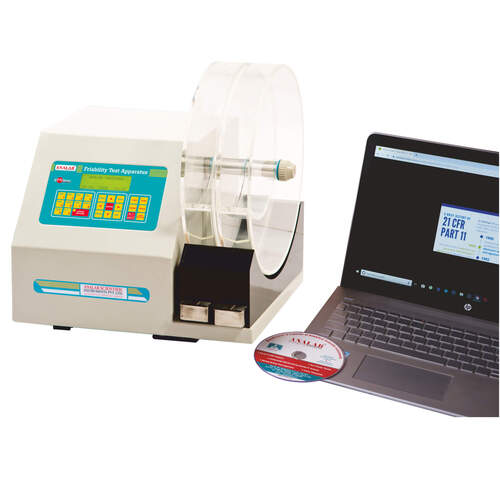

Friability Test Apparatus - Double Drum (21 CFR Part-11 Compliance)

124800.0 INR / Number
share
Friability Test Apparatus - Double Drum (21 CFR Part-11 Compliance)

Minimum Order Quantity : 1 Number

Delivery Time : 1 Week


Accuracy
0.5 RPM mg
Capacity
Speed : Variable from 20 to 70 / 100 RPM m3/hr
Dimension (L*W*H)
6 x 33 x 39 cm (L x W x H) Centimeter (cm)
Display Type
20 x 4 Line Alphanumeric Backlit LCD
Equipment Materials
Epoxy Based Powder Coated Metallic Body / GMP Enclosure made up of Stainless Steel
Model No
FTCal100
Power
230VAC Volt (v)
Product Type
Friability
Usage
Pharma
Voltage
230VAC 10%, 50 Hz Volt (v)
Weight
15 Kilograms (kg)
Certifications
ISO
Delivery Time
1 Week
FOB Port
vadodara
Main Domestic Market
All India
Main Export Market(s)
Asia
Packaging Details
Standard Pack
Payment Terms
Cash Advance (CA)
Sample Available
Yes
Supply Ability
10 Per Day

Model : FTCal100 | Make : ANALAB | HSN Code : 90318000

Technical Specifications

  • Speed : Variable from 20 to 70 / 100 RPM
  • Accuracy : 0.5 RPM
  • Timer : Variable from 1 sec. to 9 hrs. 59 min 59 sec.
  • Counter : 1 to 9999 revolutions
  • No. of Drums : Two
  • Pharmacopeia Complies : As per USP, IP, Ph. Eur.
  • Method : 40 analysis method for single friability test with View, Print & Delete facility.
  • Weight Transfer : Possible through RS-232 Port (From Balance to Instrument)
  • Tablet Discharge : Automatic in the Sample tray from drum after completion of analysis.
  • 10 Tilt : With Audio Visual Alert message
  • Calculation of result : Friability in %
  • Calibration : RPM and Count (Automatic)
  • Verification : RPM, Count and Time
  • Power failure detection : Un-interrupted tablet testing after power resume.
  • Display : 20 x 4 Line Alphanumeric Backlit LCD
  • Keypad : Membrane waterproof polycarbonate soft touch keypad compliance to UL/ROHS
  • Analysis Data Storage : More than 1500 data can be store in non-Volatile Memory which can print & view company name, print date and time, analysis date & time, record number, batch number / ID, sample name, username, pharmacopeia, assigned method number, RPM, tilt status, drum type, set and actual counts, initial and final weight, friability result, analysis done on, model number, drum ID, serial number, instrument ID etc. Secondly, analysis data can be print online.
  • Searching of data : With record number, batch number, Date and by scrolling.
  • Report Formation : As per GLP Compliance
  • 21 CFR Part-11 Compliance :
    In-built with system for ease of operation without PC.
    2 Admin, 10 Reviewers, 40 Users & 1 Manufacturer with individual Login ID & Passcode.
    Audit trail can store more than 5000 lines in instrument.
    Audit trail includes action taken, date & time, action taken by whom.
    Audit trail can be transfer to PC through ANALABsafe software and can print on 40 / 80 column dot matrix printer for record.
    Admins can set up operation permission of each Users & Reviewers.
    Strict Admins control to audit and monitor usage and access.
    Audit trail record can be printed with Date, Date Range and by individual Users ID.
    Once Audit trail transfer to the PC or Printer, system will delete Audit trail records and before final deletion, the system will give warning twice.
    Data integrity with database capability to store Analysis Data, Calibration Data, Calibration and Analysis Method, Audit trail and Passcode in instrument.
    No direct access to data from outside the instrument, thereby creating a closed system.
    Audit traceability to ensure that the device and results are appropriately handled.
    Auto Users logout after defined Logout time.
    Auto Users & Reviewers block when password is entered incorrectly 3 consecutive times
  • Printer Interface : Centronics Parallel Port / Serial (RS-232 C) Port
  • Printer : 40 / 80 Column Dot Matrix Printer (Printer to be procure optionally)
  • PC Interface : USB Type B
  • PC Connectivity : By USB Interface Cable with Driver, ANALABsafe software to transfer Analysis data in GLP format, Calibration data and Audit trail from Instrument to PC in non-editable format (Cannot Delete)
  • Power Supply : 230VAC 10%, 50 Hz
  • Dimensions:
    Net Dimension: 36 x 33 x 39 cm (L x W x H)
    Gross Dimension: 48 x 44 x 52 cm (L x W x H)
  • Weight:
    Net Weight: 8.5 kg
    Gross Weight: 15 kg



Friability Test Apparatus - Double Drum (21 CFR Part-11 Compliance)
