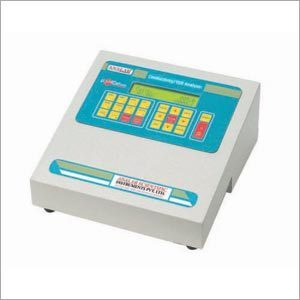

Auto Ranging Conductivity/TDS/Resistivity/Salinity/C Analyzer (21 CFR Part-11 Compliance) - Model : ConCal100

Name: Auto Ranging Conductivity/TDS/Resistivity/Salinity/C Analyzer (21 CFR Part-11 Compliance) - Model : ConCal100
Brand: ANALAB SCIENTIFIC INST. PVT. LTD.
Price: 89800 INR
Availability: InStock

89800 INR/Number

Get a Price/Quote

Product Details:

Measurement Range Conductivity: 0.05 S/cm to 500 mS/cm; TDS: 0.01 mg/L to 100 g/L; Resistivity: 0.05 cm to 20 Mcm; Salinity: 0.01 to 80 ppt
Frequency 50/60 Hz
Voltage 230 V AC
Temperature Range 0C to 100C
Capacity Auto Ranging
Core Components Microprocessor, conductive cell, temperature sensor, display unit
Model No ConCal100
Click to View more

Request to Call Back Send Inquiry

Product Details
Product Description

Auto Ranging Conductivity/TDS/Resistivity/Salinity/C Analyzer (21 CFR Part-11 Compliance) - Model : ConCal100 Price And Quantity

Minimum Order Quantity 1 Number
Price 89800 INR/Number

Sensor Type Platinum conductivity cell, temperature sensor (PT1000)
Compliance & Security User access control, electronic signature, audit trail (21 CFR Part-11)
Alarm System High/Low limit alarms for all parameters
Data Export CSV, PDF formats
Display Languages English (multi-language support optional)
Calibration Multi-point calibration with user guidance wizard
Display Resolution 128 x 64 dot-matrix (high contrast)
Firmware Update USB flash drive compatible
Ingress Protection IP65 (dust and splash proof)
Panel Mount Option Yes, available
Operating Humidity 0 to 95% RH non-condensing
Output Interfaces USB, Ethernet, RS-232, Analog output (4-20mA)
Data Storage Internal memory with up to 100,000 records
Response Time < 2 seconds

Auto Ranging Conductivity/TDS/Resistivity/Salinity/C Analyzer (21 CFR Part-11 Compliance) - Model : ConCal100 Product Specifications

Model No ConCal100
Dimension (L*W*H) 220mm x 150mm x 85mm
Accuracy 1% of full scale
Automation Grade Automatic
Power Source AC Mains
Feature 21 CFR Part-11 Compliance, multi-parameter measurement, auto calibration
Capacity Auto Ranging
Core Components Microprocessor, conductive cell, temperature sensor, display unit
Type Analyzer
Voltage 230 V AC
Equipment Materials Corrosion-resistant high-grade plastic enclosure
Temperature Range 0C to 100C
Display Type LCD digital display with backlight
Measurement Range Conductivity: 0.05 S/cm to 500 mS/cm; TDS: 0.01 mg/L to 100 g/L; Resistivity: 0.05 cm to 20 Mcm; Salinity: 0.01 to 80 ppt
Weight Approx. 2.5 kg
Frequency 50/60 Hz
Usage Water quality analysis, industrial applications, laboratory testing

Sensor Type Platinum conductivity cell, temperature sensor (PT1000)
Compliance & Security User access control, electronic signature, audit trail (21 CFR Part-11)
Alarm System High/Low limit alarms for all parameters
Data Export CSV, PDF formats
Display Languages English (multi-language support optional)
Calibration Multi-point calibration with user guidance wizard
Display Resolution 128 x 64 dot-matrix (high contrast)
Firmware Update USB flash drive compatible
Ingress Protection IP65 (dust and splash proof)
Panel Mount Option Yes, available
Operating Humidity 0 to 95% RH non-condensing
Output Interfaces USB, Ethernet, RS-232, Analog output (4-20mA)
Data Storage Internal memory with up to 100,000 records
Response Time < 2 seconds

Product Description

Purchase the unrivaled ConCal100our hot-selling Auto Ranging Conductivity/TDS/Resistivity/Salinity/C Analyzer, engineered for preeminent performance in water quality analysis, laboratory testing, and industrial applications. Crafted with a top-drawer, corrosion-resistant enclosure and advanced microprocessor, this model boasts 21 CFR Part-11 compliance, user access control, audit trail, and electronic signature for unmatched data integrity. Enjoy unrivaled accuracy, multi-point calibration, high contrast display, and capacity to internally store up to 100,000 records. Benefit from analog/digital outputs, quick-response platinum cell sensors, panel mount options, and multi-format data export. Take advantage of our exclusive offerelevate your analysis with the ConCal100.

Competitive Edge & Utility: ConCal100 Analyzer

ConCal100 stands out for its competitive advantage in precision and compliance, designed specifically for automatic water quality and parameter analysis in industrial and laboratory environments. This analyzer delivers multi-parameter measurement and unrivaled data security. The automatic calibration wizard simplifies use, while the advanced alarm and user access safeguard accuracy. Ideal for professionals seeking automation and regulatory adherence, ConCal100s high-grade construction and advanced microprocessor ensure top-drawer reliability and long-term performance.

Sample Availability & Export Details: ConCal100

ConCal100 samples are available for review before purchase, ensuring quality and satisfaction. Dispatched promptly, each analyzer is meticulously packaged in protective materials for safe goods transporteven for international shipments. Shipped to leading export markets including Asia, Europe, and North America, our products reach manufacturers and laboratories worldwide. Each unit is supplied with user manuals and calibration certificates, guaranteeing swift deployment and compliance from the moment of delivery.

FAQs of Auto Ranging Conductivity/TDS/Resistivity/Salinity/C Analyzer (21 CFR Part-11 Compliance) - Model : ConCal100:

Q: How does the ConCal100 ensure data security and regulatory compliance?

A: The ConCal100 complies with 21 CFR Part-11 by offering user access control, electronic signatures, and an audit trail feature, ensuring that all data is secure, traceable, and meets regulatory standards for laboratory and industrial use.

Q: What are the main usage applications for the ConCal100 Analyzer?

A: ConCal100 is designed for water quality analysis, laboratory testing, and various industrial applications where precise measurement of conductivity, TDS, resistivity, salinity, and temperature is crucial for operational integrity.

Q: Where can the ConCal100 Analyzer be shipped?

A: ConCal100 analyzers are shipped internationally to major export markets including India, Asia, Europe, and North America, utilizing reliable goods transport and packaging methods for safe dispatch.

Q: Which process is used for data export and firmware updates?

A: Data from the ConCal100 can be exported in CSV or PDF formats via USB. Firmware updates are easily accomplished using a USB flash drive, ensuring that the analyzer remains up-to-date with the latest features and security protocols.

Q: What benefits does auto-ranging capability offer for measurements?

A: Auto-ranging functionality enables the ConCal100 to automatically adjust for accurate readings across a wide spectrum of sample concentrations, reducing manual intervention, improving efficiency, and minimizing measurement errors.

Q: How quickly does the ConCal100 respond during measurements?

A: The ConCal100 offers a swift response time of less than 2 seconds, ensuring timely results in dynamic environments without compromising accuracy or reliability.
