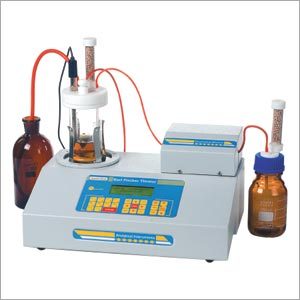

Karl Fischer Titration

Karl Fischer Titration
Karl Fischer Titration
Product Code : 17
Brand Name : ANALAB
Product Description

Owing to our proficiency in this domain, we are affianced in offering high quality range of Karl Fischer Titration. Manufactured by our adroit experts using high quality materials and the advanced technology as per the industry standards, this is strictly examined on different parameters. Furthermore, this Karl Fischer Titrationis ideal for determining the trace amounts of water in a sample.


  • Unmatched performance
  • Long service life
  • Robust in construction


  • 250ml Reaction Vessel

  • Dual Platinum Electrode

  • PTFE Paddle PTFE Assembly

  • Moisture Trap for Reaction Vessel & 250ml Amber Reservoir Bottle

  • Dispensing Tube (02 Nos)

  • PTFE Tubing for Dispensing Path

  • Operational & Instruction Manual

  • Manufacturer Test Certificate and Warranty Card.

Technical Specification

  • Method of Detection : Conductometric

  • Backlit LCD Display : 20 x 4 Line Alphanumeric

  • Range of Moisture Detection : Less than 10 PPM to 100%

  • Display of Reading : Direct Reading of Moisture in PPM, Percentage(%) & mg/ml of water

  • Dispenser : Motorized Dispensing for low and accurate measurement of reagent.

  • Electrode : Dual Platinum Electrode.

  • Interface : Serial & Parallel Port for PC & Dot-matrix Printer attachment.

  • Stirring Time : 00:00 to 99:00 (Minutes : Second) - Users Adjustable

  • End Point Time : 1-99 Seconds , Users Adjustable

  • End Point Sensitivity of Moisture Detection : Users Adjustable

  • Calibration Reminder Alarm : 0-99 hours

  • Data Storage : More than 100 Analysis data with corresponding calibration data.

  • Input : Electrode Connector

  • Power supply : 230 VAC + 10%, 50 Hz

Salient Features

  • Metallic Epoxy Based Powder Coated Body Parallel & Serial Port for Dot-matrix Printer & PC attachment respectively.

  • Report Formation as per GLP Compliance. 100 analysis data storage with corresponding calibration date with Batch Number, Real Date & Time, Operator Name, Sample Name, searching of data as per Batch No.

  • Built in Magnetic Stirrer with soft touch Key Speed Controller. Automatic end point detection with Audio & Visual Alarm.

  • Auto Neutralization reduces the time between analysis & gives accurate Results.

  • OVER TITER Audio Alarm save KF Reagent Automatic Calculation of Avg.

  • Factor &10 KF Factor can be stored in memory Auto Drain Facility for cleaning reaction vessel. Onsite Dispenser Calibration / Validation Facility.

  • MOC of Dispenser is SS/ABS/PTFE for Corrosion Protection & Maintenance Free Operation.In-Built Flushing System for cleaning dispensing path.

  • Users adjustable end point sensitivity.

  • Calculation of % RSD Transfer of weight directly from Balance to KF Unit.

  • RS-232 to USB interface with Cable & Driver Software to Transfer Data from Inst. to PC.
