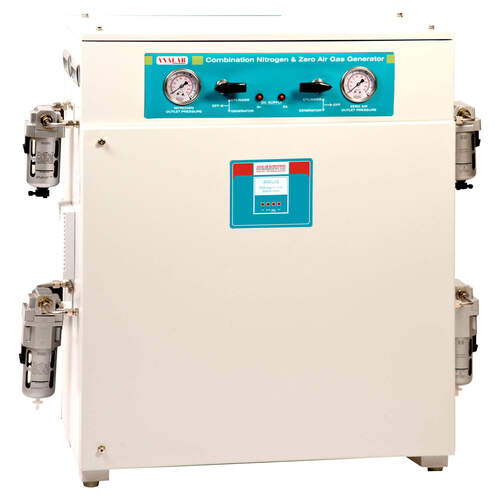

Combination Nitrogen & Zero Air Gas Generator

Combination Nitrogen & Zero Air Gas Generator
Combination Nitrogen & Zero Air Gas Generator
Send Inquiry
Product Code : NZA-4800
Brand Name : ANALAB
Product Description

Combination Nitrogen & Zero Air Gas Generator

The combination Nitrogen Zero Air Gas Generator offered by us is widely known for highly efficient operation, low energy consumption and easy installation features. It comes with a oil-free compressor with maintained HP and has wide load capacity storage tank. Moreover, the dew point is kept under -40 degree Celsius and runs in stabilized power supply. The generator comes with moisture separator with air filter in order to remove dust, moisture and mist. Furthermore, the air gas generator has auto-drain system for air compressor and standard hardware & fittings that includes ferrules, nuts, unions, tee and tubing. We offer the Combination Nitrogen Zero Air Gas Generator at cost-effective rates to clients.

Nitrogen - Zero Air Combination Generator with Suitable Air Compressor

  • Model : NZA-4800 Make: ANALAB
  • Moisture Content < 2 ppm
  • Oxygen < 5 ppm
  • Total Hydro Carbon < 0.3 ppm
  • CO & CO2 < 1 ppm
  • Purity of Gas : UHP / GC Grade
  • Micron Particulates < 0.01 Micron ** Room Temperature : 10 - 40ºC
  • Capacity of Nitrogen Gas : 800 ml/Min at 6 kg/cm2
  • Capacity of Zero Air Gas : 4000 ml/Min at 6 kg/cm2
  • Oil Free Air Compressor with 1.0 HP with 40L Storage Tank.
  • Method of Purification : Pressure Swing Adsorption
  • Room Temperature : 5 - 30ºC
  • Total Hydro Carbon < 0.5 ppm
  • Dew Point : -40ºC
  • Power Supply : 230VAC ± 10%,50Hz
Optional Accessories
  • Moisture Separator with Air Filter to remove moisture, dust & mist
  • Auto Drain System For Air Compressor
  • Standard Hardware & Fittings which includes Nuts, Ferrules, Tee, Unions, 1/4" Tubing etc.
